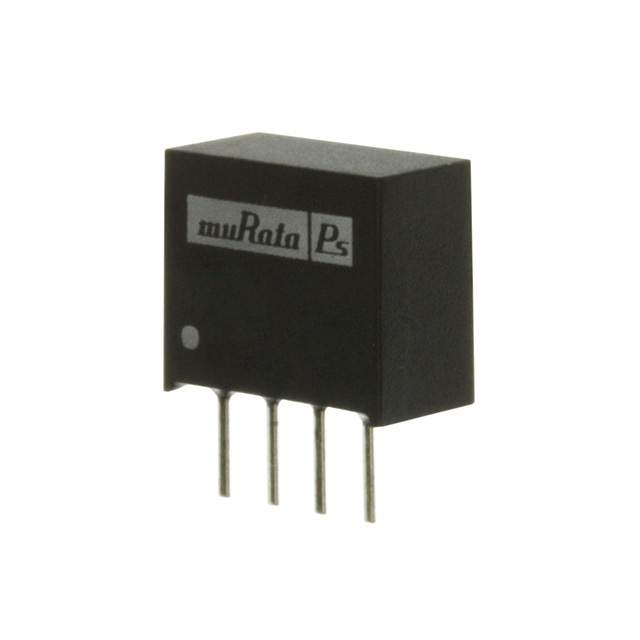

NME0512SC
Isolated Module DC DC Converter 1 Output 12V 83mA 4.5V - 5.5V Input
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the NME0512SC by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the NME0512SC
| Part Name | NME0512SC |
| Manufacturer | Murata Power |
| Category | DC-DC Converters |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=NME0512SC |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Load Regulation | ±9.5 (%) |
| Number Of Outputs | 1 |
| Maximum Temperature | +85 (°C) |
| Output Current (A) | 83 (mA) |
| Mounting Type | Through Hole |
| Package | SIP |
| Series | NME |
| Input Voltage Range (V) | 4.5 → 5.5 V dc |
| Isolated | Yes |
| Depth | 10 (mm) |
| Isolation Voltage (V) | 1 (kV dc) |
| Length | 11.48 (mm) |
| Minimum Temperature | -40 (°C) |
| Input Voltage Nominal (V) | 5 V dc |
| Power Rating | 1 (W) |
| Output Voltage (V) | 12 (V dc) |
